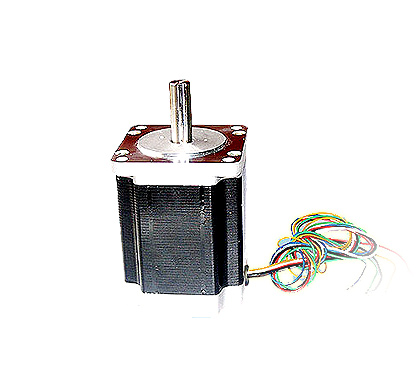

Stepping Motor detailed description

Step Angle Accuracy:         ±5%

Insulation resistance:         100MΩ Min 500V DC

Dielectric Strength:              500VAC/min

Temperature rise:                  80℃ Max

Radial direction runout:       0.02mm Max

Axial runout:                         0.1-0.3mm

Stepping  motor technology data

Stepping motor outline drawing

Stepping motor wiring diagram
