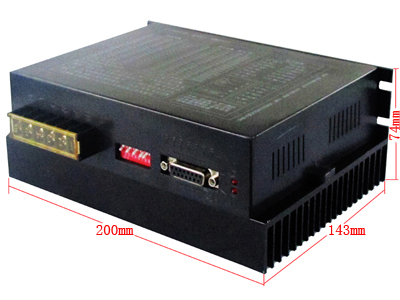

Product Name：RB3722
Product Code：RB3722
This item is based on the DSP-controlled three-phase stepper motor driver. It is combined with advanced DSP control chip and three-phase inverter drive module together constitute the new generation of digital stepping motor driver. Drive voltage is AC110V-220V, Adapter current below 5.8A (7.0A), OD 57-130mm various types of three-phase hybrid stepper motor. This circuit allows the motor running smooth, almost no vibration and noise at high speed, the motor torque is much higher than the two-phase and five-phase hybrid stepping motor. Positioning accuracy is up to 60,000 steps / rev. The products are widely used in the engraving machine, medium-sized CNC machine tools, computer embroidery machine, packaging machinery and other high-resolution large and medium-sized CNC equipment. Feature * High performance, low price * 16 channels angle constant torque subdivision, a maximum resolution of 60,000 steps / rev * Maximum response frequency is up to 200Kpps * The pulse stops over 1.5s, the coil current is automatically reduced to half of the set current * Opto isolated input / output * Drive current from 1.2A / to phase 5.8A / phase (1.3A / phase to 7.0A / phase) sub-16 adjustable * Single power input, voltage range: AC110V-220V * Phase memory function (Note: the input is stopped for more than 3 seconds, the automatic memory of the drive when the motor phase, re-power or MF signal from low to high, the drive motor automatic recovery phase). Alternative product item: DVS DV3522(DV3722) YAKO YKC3722MA Current setting The drive current is set by the D1-D4 terminal, The running current work properly output current setting switch (see table below) D9=ON:DR=BRAKE D9=OFF:DR=DIRECT D10=ON:TEST MOTOR AND FUN D10=OFF: NORMAL WORK LIGHT STATE:L1L2 TURN ON:BOTH LIGHT SHINING L1 ON L2 OFF:WHEN GET THE CP SIGNAL L2 OFF L2:MOTOR FLIP L1 ON AND THEN OFF:DRIVER GET THE PU SIGNAL L1 AND L2 OFF:VOLTAGE IS LOWING L1 OFF L2 ON:CURRENT TOO HIGH OR MOTOR IS BROKEN. L1 FLASH L2 ON:VOLTAGE IS TOO HIGH L1 L2 ALTERNATING BRIGHT:STEPPING MOTOR LEAD LINE IS NOT CONNECTED OR DRIVER GET TOO HOT AND FUN TURN BAD. Sub-set Drive segment set by the D5-D8 terminal, a total of 16 stalls, D9 and D10 to the function setting. Schedule: the number of segments (pulse / rev) Terminal connection PU:PULSE MF:OFFLINE RDY:STATE OF THE OUTPUT DR:DIRECTION ALM:FAULT OUTPUT,IF FAULT OUTPUT,THE MOTOR REVERSE THEN NEED TO EXCHANGE U AND V.
This item is based on the DSP-controlled three-phase stepper motor driver. It is combined with advanced DSP control chip and three-phase inverter drive module together constitute the new generation of digital stepping motor driver. Drive voltage is AC110V-220V, Adapter current below 5.8A (7.0A), OD 57-130mm various types of three-phase hybrid stepper motor. This circuit allows the motor running smooth, almost no vibration and noise at high speed, the motor torque is much higher than the two-phase and five-phase hybrid stepping motor. Positioning accuracy is up to 60,000 steps / rev. The products are widely used in the engraving machine, medium-sized CNC machine tools, computer embroidery machine, packaging machinery and other high-resolution large and medium-sized CNC equipment. Feature * High performance, low price * 16 channels angle constant torque subdivision, a maximum resolution of 60,000 steps / rev * Maximum response frequency is up to 200Kpps * The pulse stops over 1.5s, the coil current is automatically reduced to half of the set current * Opto isolated input / output * Drive current from 1.2A / to phase 5.8A / phase (1.3A / phase to 7.0A / phase) sub-16 adjustable * Single power input, voltage range: AC110V-220V * Phase memory function (Note: the input is stopped for more than 3 seconds, the automatic memory of the drive when the motor phase, re-power or MF signal from low to high, the drive motor automatic recovery phase).
Alternative product item: DVS DV3522(DV3722) YAKO YKC3722MA
Current setting The drive current is set by the D1-D4 terminal, The running current work properly output current setting switch (see table below)
D9=ON:DR=BRAKE
D9=OFF:DR=DIRECT
D10=ON:TEST MOTOR AND FUN
D10=OFF: NORMAL WORK
LIGHT STATE:L1L2 TURN ON:BOTH LIGHT SHINING
L1 ON L2 OFF:WHEN GET THE CP SIGNAL L2 OFF
L2:MOTOR FLIP
L1 ON AND THEN OFF:DRIVER GET THE PU SIGNAL
L1 AND L2 OFF:VOLTAGE IS LOWING
L1 OFF L2 ON:CURRENT TOO HIGH OR MOTOR IS BROKEN.
L1 FLASH L2 ON:VOLTAGE IS TOO HIGH
L1 L2 ALTERNATING BRIGHT:STEPPING MOTOR LEAD LINE
IS NOT CONNECTED OR DRIVER GET TOO HOT AND FUN TURN
BAD.

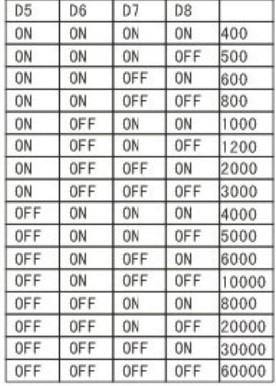

Sub-set Drive segment set by the D5-D8 terminal, a total of 16 stalls, D9 and D10 to the function setting. Schedule: the number of segments (pulse / rev)

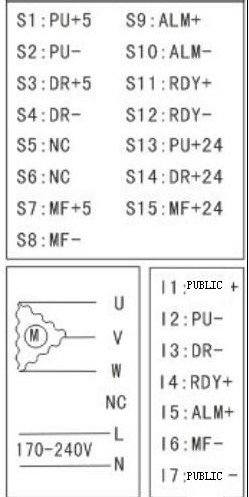

Terminal connection
PU:PULSE
MF:OFFLINE
RDY:STATE OF THE OUTPUT
DR:DIRECTION
ALM:FAULT OUTPUT,IF FAULT OUTPUT,THE MOTOR REVERSE THEN NEED TO
EXCHANGE U AND V.
