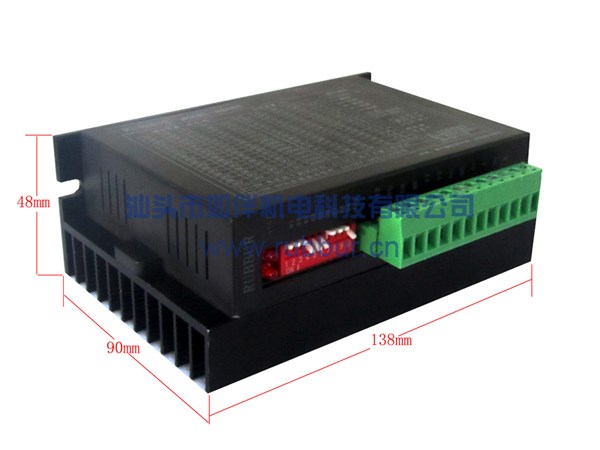

This item is based on the DSP-controlled two-phase hybrid stepping motor driver, the new generation of digital stepping motor drive. Drive voltage is DC24V-50V, adapter current below 4.5A, outside diameter 42-57mm various types of two-phase hybrid stepping motors. Smooth operation, minimal vibration and noise. Positioning accuracy of up to 40,000 steps / rev. The product is widely used in the engraving machine, medium-sized CNC machine tools, computer embroidery machine, packaging machinery and other high-resolution small, medium-sized CNC equipment.

* High performance, low price

* 16 channels angle constant torque subdivision, highest resolution of 40,000 steps / rev

* Maximum response frequency is up to 200Kpps

* The pulse stops over 1.5s, the coil current is automatically reduced to half of the set current

* Opto isolated input / output

* Drive current 0.8A / phase to 4.5A / phase Division 16 adjustable

* Single power input, voltage range: DC 24V-50V

Alternative products Model:    DVS   DV245

Current setting



The drive current is set by the D1-D4 terminal, The running current work properly output current setting switch (see table below)

D1=ON:MOTOR IS ON THE TEST STATE

D1=OFF: ON THE NORMAL STATE

D2=ON:DR REVERSE PULSE SIGNAL

D2=OFF:DR DIRECTION SIGNAL

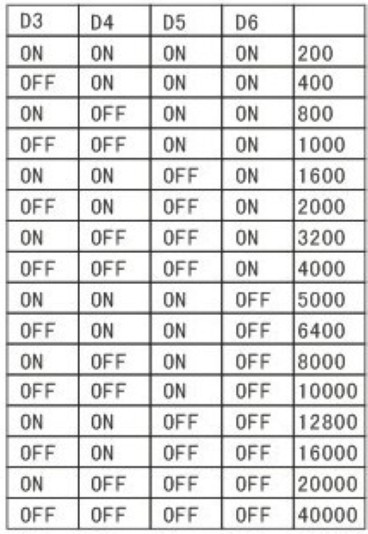

Sub-set

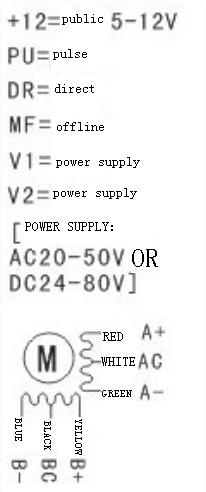

TERMINAL CONNETION

DIFFERENT BRAND'S MOTOR LEAD LINE MAYBE DIFFERENT,IF THE MOTOR REVERSE AND THEN NEED TO EXCHANGE THE B+ AND B- BUTTON
