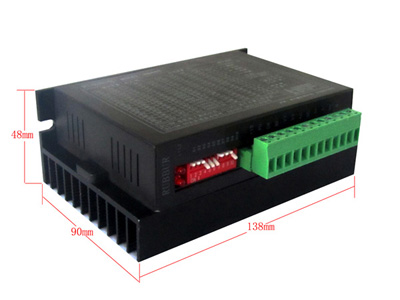

Product Name：RB468
Product Code：RB468
Suitable for a variety of large-scale automation equipment: engraving machine, cutting machine, packaging machinery, electronic processing equipment, automated assembly equipment. Users expect a small noise, high-speed devices excellent special effects.
16 micro-step breakdown, the number of the maximum step 51200Pulse/rev; the work peak current to 2.4A-7.2A output current total of eight files, the resolution of the current is about 0.6A; has an automatic semi-flowover-voltage, over-current protection function. The drive for AC-DC power supply, recommended operating voltage range of 18VAC-50VAC voltage does not exceed 50VAC, not less than 16VAC. Function Description of the drive Parameter setting The MA860 drive eight DIP switches to set the subdivision precision, dynamic current and semi-current / full flow. Described in detail as follows: Working current setting Micro-step set Mounting dimensions

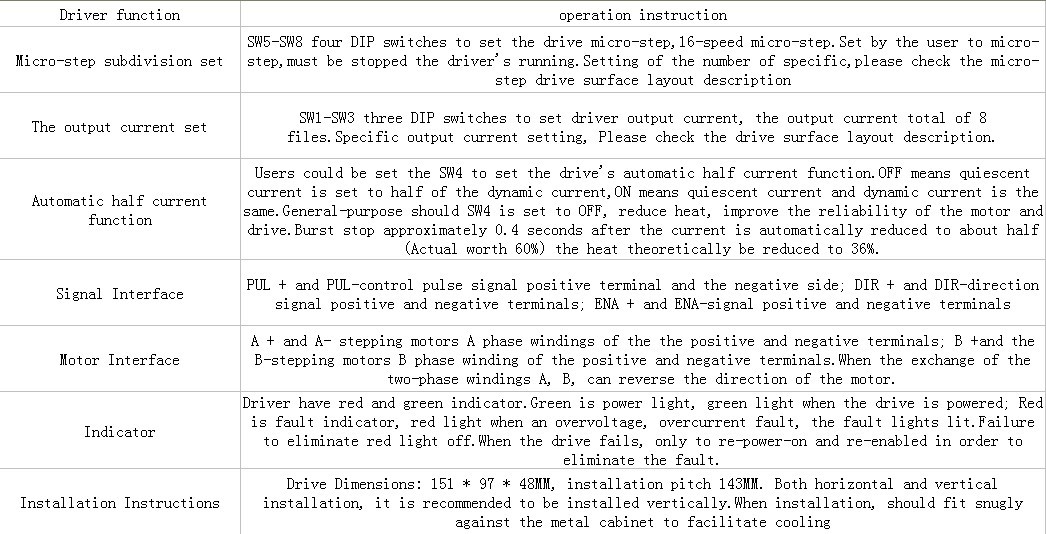

16 micro-step breakdown, the number of the maximum step 51200Pulse/rev; the work peak current to 2.4A-7.2A output current total of eight files, the resolution of the current is about 0.6A; has an automatic semi-flowover-voltage, over-current protection function. The drive for AC-DC power supply, recommended operating voltage range of 18VAC-50VAC voltage does not exceed 50VAC, not less than 16VAC. Function Description of the drive
Parameter setting The MA860 drive eight DIP switches to set the subdivision precision, dynamic current and semi-current / full flow. Described in detail as follows:

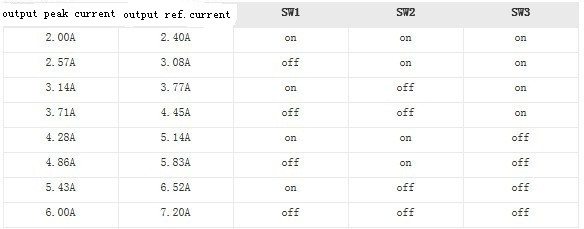

Working current setting

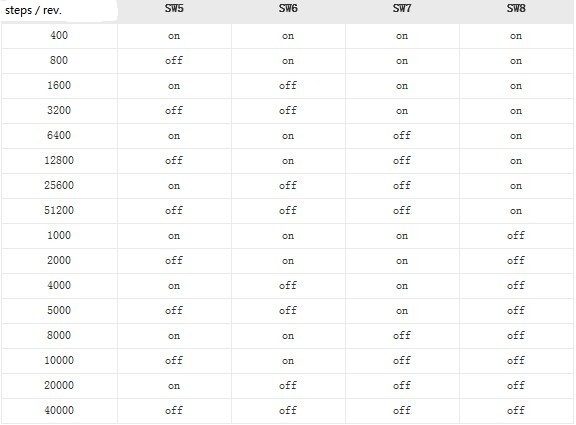

Micro-step set

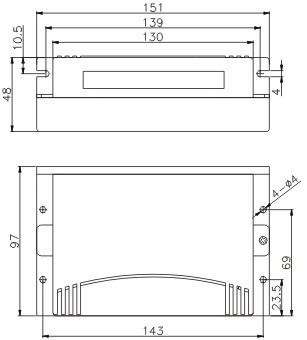

Mounting dimensions
