Product Name：RB368
Product Code：RB368
The products are widely used in the engraving machine, medium-sized CNC machine tools, computer embroidery machine, packaging machinery and other high-resolution large and medium-sized CNC equipment.
The product is based on the DSP-controlled two-phase stepper motor driver, the new generation of digital stepping motor driver. Drive voltage is DC24V-80V adapter current below 6.2A, outside diameter 57-86mm various types of three-phase hybrid stepper motor. The internal drive uses a similar principle of servo control circuit, which can make the smooth operation of the motor, the motor at high speed, torque higher than the two-phase hybrid stepping motor. Positioning accuracy of up to 60,000 steps / rev. * High performance, low price * 16 channels angle constant torque subdivision, a maximum resolution of 60,000 steps / rev * Maximum response frequency of up to 200Kpps * The pulse stops 1.5s, the coil current is automatically reduced to half of the set current * Opto isolated input / output * Drive current 2.5A / phase to 6.2A / phase 8 adjustable * Single power input, voltage range: DC 24V-80V * Phase memory function (Note: the input is stopped for more than 3 seconds, the automatic memory of the drive when the motor phase, re-power or MF signal from low to high, the drive motor automatic recovery phase). Current setting The drive current is set by the D1-D4 terminal, The running current work properly output current setting switch (see table below) Sub-set Drive segment set by the D5-D8 terminal, a total of 16 stalls, D9 and D10 to the function setting. Schedule: the number of segments (pulse / rev) Note: the number of segments according to customer requirements! ! Note 1, the input voltage can not exceed DC80V; 2, the input control signal is 5V, current limiting resistance is needed when over 5V; 3, the falling edge of the input pulse signal is effective; 4, the drive temperature exceeds 80 ℃ drive stops working, the fault indicator ALM bright, until the drive temperature dropped to 50 ° C, the drive needs to re-power in order to return to work.Overheat protection, please install the radiator; 5.Overcurrent (short circuit) fault indicator ALM bright, check the electrical wiring and other short-circuit fault, eliminate need to re-power recovery; 6, Without the motor fault indicator ALM bright, check the electrical wiring, eliminate need to re-power is restored. Drive wiring, size diagram Pin Function Description
The product is based on the DSP-controlled two-phase stepper motor driver, the new generation of digital stepping motor driver. Drive voltage is DC24V-80V adapter current below 6.2A, outside diameter 57-86mm various types of three-phase hybrid stepper motor. The internal drive uses a similar principle of servo control circuit, which can make the smooth operation of the motor, the motor at high speed, torque higher than the two-phase hybrid stepping motor. Positioning accuracy of up to 60,000 steps / rev. * High performance, low price * 16 channels angle constant torque subdivision, a maximum resolution of 60,000 steps / rev * Maximum response frequency of up to 200Kpps * The pulse stops 1.5s, the coil current is automatically reduced to half of the set current * Opto isolated input / output * Drive current 2.5A / phase to 6.2A / phase 8 adjustable * Single power input, voltage range: DC 24V-80V * Phase memory function (Note: the input is stopped for more than 3 seconds, the automatic memory of the drive when the motor phase, re-power or MF signal from low to high, the drive motor automatic recovery phase).

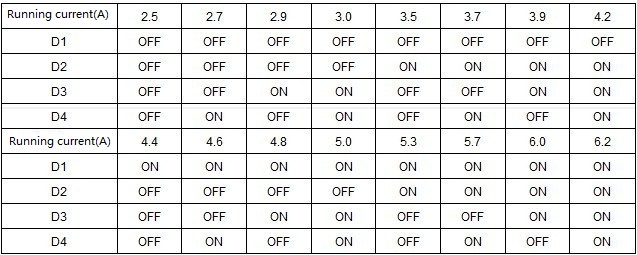

Current setting The drive current is set by the D1-D4 terminal, The running current work properly output current setting switch (see table below)

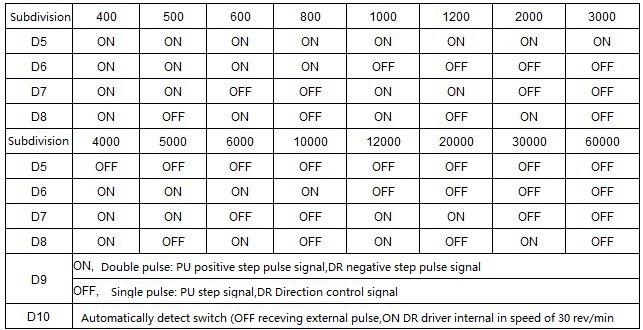

Sub-set Drive segment set by the D5-D8 terminal, a total of 16 stalls, D9 and D10 to the function setting. Schedule: the number of segments (pulse / rev)

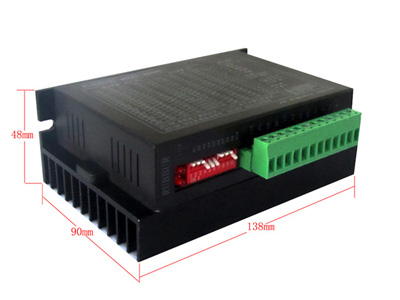

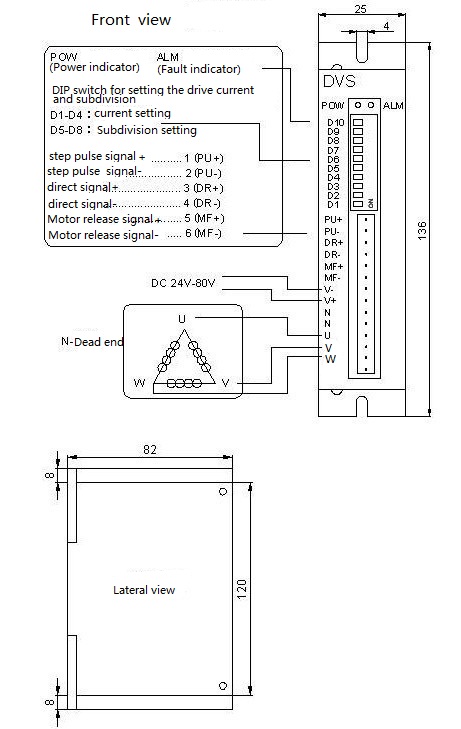

Note: the number of segments according to customer requirements! ! Note 1, the input voltage can not exceed DC80V; 2, the input control signal is 5V, current limiting resistance is needed when over 5V; 3, the falling edge of the input pulse signal is effective; 4, the drive temperature exceeds 80 ℃ drive stops working, the fault indicator ALM bright, until the drive temperature dropped to 50 ° C, the drive needs to re-power in order to return to work.Overheat protection, please install the radiator; 5.Overcurrent (short circuit) fault indicator ALM bright, check the electrical wiring and other short-circuit fault, eliminate need to re-power recovery; 6, Without the motor fault indicator ALM bright, check the electrical wiring, eliminate need to re-power is restored. Drive wiring, size diagram

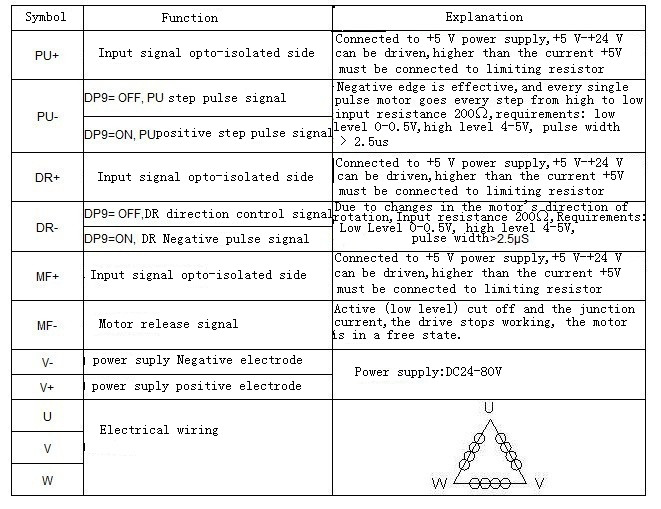

Pin Function Description
